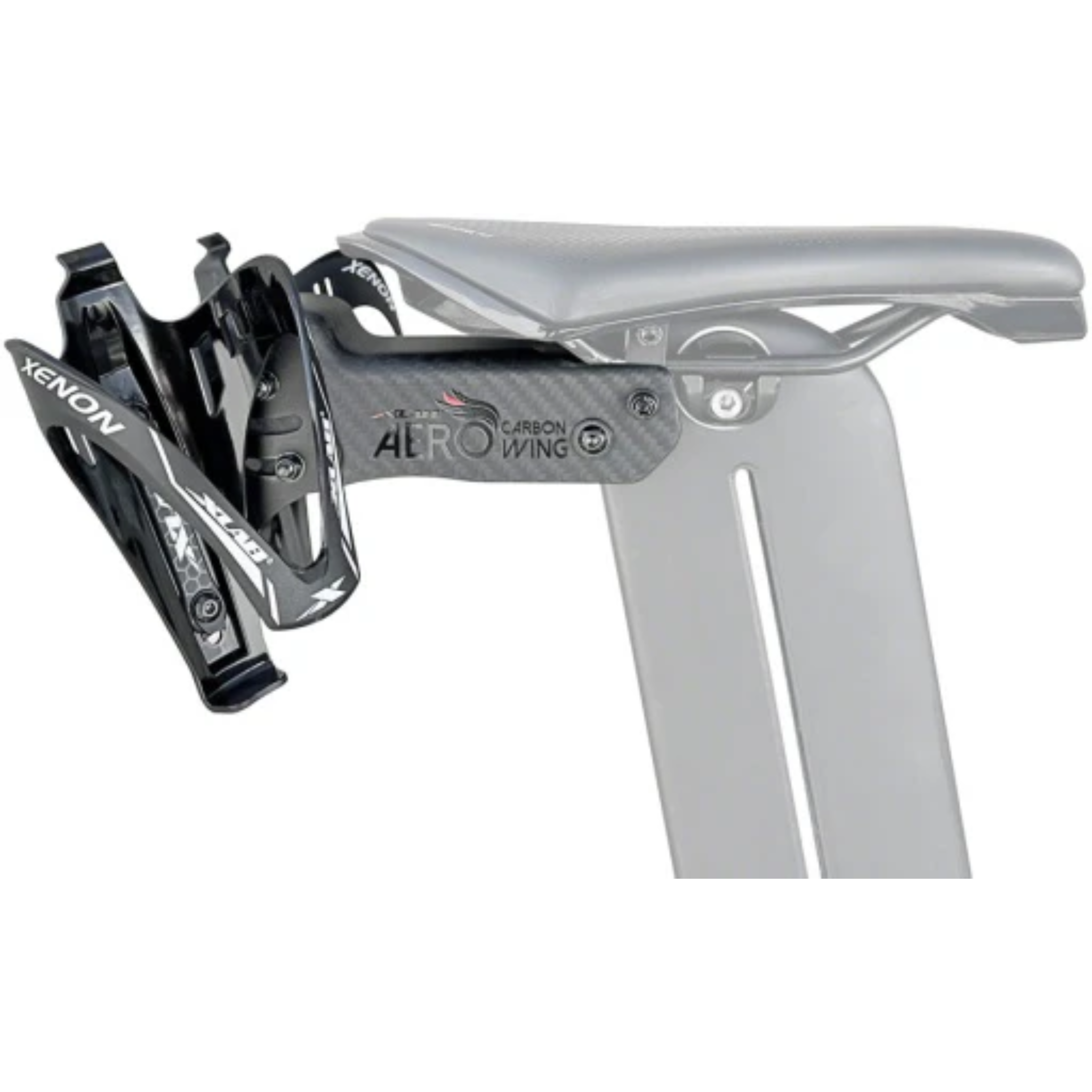

Aero Carbon Wing Behind Saddle Water Bottle Cage Mount - Includes 2 Xenon Cages
XLAB Aero Carbon Wing Carrier - Xenon Cages
The Aero Carbon Wing Carrier - Xenon positions the water bottles with 2 Xenon cages in an aerodynamic position behind the athlete, where air pressure and overall resistance are reduced. Placing the bottles behind the saddle saves a considerable amount of time compared to mounting them on the frame.
Highlights of the XLAB Aero Carbon Wing bottle cage - Xenon
Twice as fast: Extensive aero research enables almost twice the time saving of previous generations.
Improved bottle retention: The cages have been repositioned for optimum grip and easier access.
Carbon Beam: Special proprietary design to reduce vibrations.
Better compatibility: Fits a wide range of saddle rails as it mounts to the saddle's horizontal rail.
Application area: Approved for paved roads with 25 oz (740 ml) bottles or smaller.
Adjustable and compatible
-
Adjustment of the saddle frame
The rail can be adjusted by 18 degrees so that the Aero Carbon Wing remains in the most aerodynamic position, parallel to the ground. -
Cage arm adjustment
2.52 cm (1") of vertical and 1.27 cm (0.5") of horizontal adjustment allows you to set the perfect ergonomic position that facilitates access to the water bottle and further reduces drag. -
Adjusting the cage rotation
In the high position, the cage can be rotated a full 50 degrees. In the low position, the bottle cage can be adjusted by up to 45 degrees. -
Comprehensive saddle compatibility
Fits over 50 of the most common saddles. The holders fit standard steel and titanium saddle rails with a diameter of 7 mm.
Sophisticated design
-
Hidden storage space for tools
There is space for a complete repair kit on the underside of the carrier without increasing air resistance. The perfect addition to the new AERO MINI BAG. -
Quick removal
The rack can be easily removed from the saddle rails for convenient packing or transferring to another bike. Simply remove two upper bolts and loosen two lower bolts and the system rotates freely. -
Advanced ultralight construction
Constructed with an ultralight carbon monocoque carrier and 6061 T-6 and 7075 T-6 aluminum alloy cage arms for increased lateral stiffness, torsional strength and overall durability at a low weight.
Materials
-
AERO CARBON WING BEAM: Carbon fiber composite -
RAIL BRACKET: 7075 T-6 aluminum alloy -
CAGE ARM: 6061 T-6 aluminum alloy - XENON cages: Nylon composite material
Includes: Bottle cage adapter, cage arms, mounting hardware, 2 xenon bottle cages with load capacity of 3.62kg
